Bin Store Buildings
urbanspec H-Series Bin store buildings
The process of design delivery for bin store buildings can be challenging, with the potential for disconnect between design specification and realisation on site resulting in project overspend and consequent reduction in scope of works.

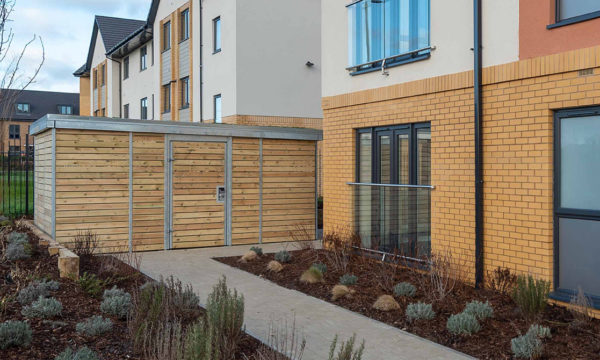

urbanspec H-Series Bin Store Buildings have been developed specifically to overcome these challenges and offer one of the most configurable design platforms for external storage in the world. Over 120 pre-engineered build layouts can be individually specified for storage capacity, panel cladding type, frame finishes, access door size, door location, access control type and roof type. Custom bin store dimensions and configurations from the same proven design platform are made possible with the urbanspec integrated design and engineering methodology.
Every urbanspec product is UK manufactured in accordance with BS EN 1090, ISO9001 and ISO14001 accredited processes and our steel frame finishes can be selected as hot-dip galvanised or colour powder coated with external panel types from timber or steel including laser-cut design patterns.
The urbanspec H-Series roof design has been developed to accommodate the structure for both extensive and intensive lightweight green roof systems with the complete system for waterproofing, water reservoir and growing medium integrated.
urbanspec integrated design and engineering for access control, extends to fire-resistant wall and roof panel specifications accommodated within the proven steel door and frame design, reducing fire risk where bin store facilities cannot be located outside of the six metre recommended distance due to site constraints.
Specifying urbanspec H-Series Bin Store Buildings is made easy with clear technical product information for configurations and options, while site-wide coordination of outdoor storage units and street furniture is possible with a library of CAD models available for download.
Model | Depth [mm] | Width [mm] | Height [mm] | Data Sheet | CAD Model | Tech Drawing |
---|---|---|---|---|---|---|
HB24.26 | 2730 | 2720 | 2340 | Download | Download | Download |
HB24.32 | 2730 | 3320 | 2340 | Download | Download | Download |
HB24.38 | 2730 | 3920 | 2340 | Download | Download | Download |
HB24.44 | 2730 | 4520 | 2340 | Download | Download | Download |
HB24.50 | 2730 | 5120 | 2340 | Download | Download | Download |
HB24.56 | 2730 | 5720 | 2340 | Download | Download | Download |
HB24.62 | 2730 | 6320 | 2340 | Download | Download | Download |
HB24.68 | 2730 | 6920 | 2340 | Download | Download | Download |
HB24.74 | 2730 | 7520 | 2340 | Download | Download | Download |
HB24.80 | 2730 | 8120 | 2340 | Download | Download | Download |
HB24.86 | 2730 | 8720 | 2340 | Download | Download | Download |
HB24.92 | 2730 | 9320 | 2340 | Download | Download | Download |
HB24.98 | 2730 | 9920 | 2340 | Download | Download | Download |
Model | Depth [mm] | Width [mm] | Height [mm] | Data Sheet | CAD Model | Tech Drawing |
---|---|---|---|---|---|---|
HB30.26 | 3330 | 2720 | 2340 | Download | Download | Download |
HB30.32 | 3330 | 3320 | 2340 | Download | Download | Download |
HB30.38 | 3330 | 3920 | 2340 | Download | Download | Download |
HB30.44 | 3330 | 4520 | 2340 | Download | Download | Download |
HB30.50 | 3330 | 5120 | 2340 | Download | Download | Download |
HB30.56 | 3330 | 5720 | 2340 | Download | Download | Download |
HB30.62 | 3330 | 6320 | 2340 | Download | Download | Download |
HB30.68 | 3330 | 6920 | 2340 | Download | Download | Download |
HB30.74 | 3330 | 7520 | 2340 | Download | Download | Download |
HB30.80 | 3330 | 8120 | 2340 | Download | Download | Download |
HB30.86 | 3330 | 8720 | 2340 | Download | Download | Download |
HB30.92 | 3330 | 9320 | 2340 | Download | Download | Download |
HB30.98 | 3330 | 9920 | 2340 | Download | Download | Download |
Model | Depth [mm] | Width [mm] | Height [mm] | Data Sheet | CAD Model | Tech Drawing |
---|---|---|---|---|---|---|
HB36.26 | 3930 | 2720 | 2340 | Download | Download | Download |
HB36.32 | 3930 | 3320 | 2340 | Download | Download | Download |
HB36.38 | 3930 | 3920 | 2340 | Download | Download | Download |
HB36.44 | 3930 | 4520 | 2340 | Download | Download | Download |
HB36.50 | 3930 | 5120 | 2340 | Download | Download | Download |
HB36.56 | 3930 | 5720 | 2340 | Download | Download | Download |
HB36.62 | 3930 | 6320 | 2340 | Download | Download | Download |
HB36.68 | 3930 | 6920 | 2340 | Download | Download | Download |
HB36.74 | 3930 | 7520 | 2340 | Download | Download | Download |
HB36.80 | 3930 | 8120 | 2340 | Download | Download | Download |
HB36.86 | 3930 | 8720 | 2340 | Download | Download | Download |
HB36.92 | 3930 | 9320 | 2340 | Download | Download | Download |
HB36.98 | 3930 | 9920 | 2340 | Download | Download | Download |
Model | Depth [mm] | Width [mm] | Height [mm] | Data Sheet | CAD Model | Tech Drawing |
---|---|---|---|---|---|---|
HB42.26 | 4530 | 2720 | 2340 | Download | Download | Download |
HB42.32 | 4530 | 3320 | 2340 | Download | Download | Download |
HB42.38 | 4530 | 3920 | 2340 | Download | Download | Download |
HB42.44 | 4530 | 4520 | 2340 | Download | Download | Download |
HB42.50 | 4530 | 5120 | 2340 | Download | Download | Download |
HB42.56 | 4530 | 5720 | 2340 | Download | Download | Download |
HB42.62 | 4530 | 6320 | 2340 | Download | Download | Download |
HB42.68 | 4530 | 6920 | 2340 | Download | Download | Download |
HB42.74 | 4530 | 7520 | 2340 | Download | Download | Download |
HB42.80 | 4530 | 8120 | 2340 | Download | Download | Download |
HB42.86 | 4530 | 8720 | 2340 | Download | Download | Download |
HB42.92 | 4530 | 9320 | 2340 | Download | Download | Download |
HB42.98 | 4530 | 9920 | 2340 | Download | Download | Download |
Model | Depth [mm] | Width [mm] | Height [mm] | Data Sheet | CAD Model | Tech Drawing |
---|---|---|---|---|---|---|
HB48.26 | 5130 | 2720 | 2340 | Download | Download | Download |
HB48.32 | 5130 | 3320 | 2340 | Download | Download | Download |
HB48.38 | 5130 | 3920 | 2340 | Download | Download | Download |
HB48.44 | 5130 | 4520 | 2340 | Download | Download | Download |
HB48.50 | 5130 | 5120 | 2340 | Download | Download | Download |
HB48.56 | 5130 | 5720 | 2340 | Download | Download | Download |
HB48.62 | 5130 | 6320 | 2340 | Download | Download | Download |
HB48.68 | 5130 | 6920 | 2340 | Download | Download | Download |
HB48.74 | 5130 | 7520 | 2340 | Download | Download | Download |
HB48.80 | 5130 | 8120 | 2340 | Download | Download | Download |
HB48.86 | 5130 | 8720 | 2340 | Download | Download | Download |
HB48.92 | 5130 | 9320 | 2340 | Download | Download | Download |
HB48.98 | 5130 | 9920 | 2340 | Download | Download | Download |
