urbanspec M-Series External stores

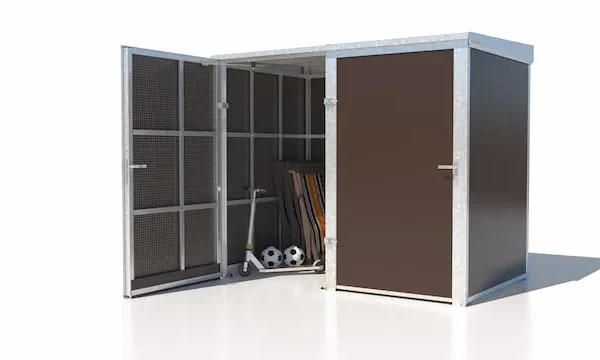

urbanspec M-Series External Stores are full height, secure storage lockers with individual controlled access to each compartment. The linear design format of M-Series is ideally suited to residential schemes, optimising available footprint for multi-purpose, secure outdoor storage, including in narrow spaces close to buildings.

read more...

Designed for ease of specification, available in three unit depths and two compartment widths from standard, the class leading choice of panel types, finishes, access systems and roof options, enable M-Series products to add a welcome architectural impact to a scheme, in addition to fulfilling a practical storage function.

Our integrated design and engineering model extends to green roof systems, an integral means for securing Biodiversity Net Gain credentials on new developments and underscoring a commitment to championing the environment and its fragile ecosystems.

Prevention of theft or damage to contents is central to urbanspec M-Series product design with specifications available from basic level to high security. urbanspec M-Series External Stores can be factory ordered to Secure By Design specification, certified to Sold Secure S314 Silver Specification for Security Cabinets.

urbanspec M-Series structures are designed and manufactured in the UK under BS EN 9001:2015, BS EN 9001:2015 and BS EN 1090 accredited processes. Hot dip galvanised coating is standard with colour powder coat options.

show less
QUOTE MY PROJECT

urbanspec M-Series External Stores Specification & Options

  • Product Availability and Dimensions

    The urbanspec M-Series External store range is available in two standard module widths (1.05m and 1.25m) and three standard module depths (1.2m, 1.5m and 1.8m) and single units can be up to six modules long. This range of dimensions makes it easy for you to construct stores that fit the space you have available. Custom outdoor storage unit sizes can also be manufactured.
    ModelStorageDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    MT12.121no. Secure Unit127112822052DownloadDownloadDownload
    MT12.242no. Secure Units127124822052DownloadDownloadDownload
    MT12.363no. Secure Units127136822052DownloadDownloadDownload
    MT12.484no. Secure Units127148822052DownloadDownloadDownload
    MT12.605no. Secure Units127160822052DownloadDownloadDownload
    MT12.726no. Secure Units127172822052DownloadDownloadDownload
    ModelStorageDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    MT15.121no. Secure Unit157112822052DownloadDownloadDownload
    MT15.242no. Secure Units157124822052DownloadDownloadDownload
    MT15.363no. Secure Units157136822052DownloadDownloadDownload
    MT15.484no. Secure Units157148822052DownloadDownloadDownload
    MT15.605no. Secure Units157160822052DownloadDownloadDownload
    MT15.726no. Secure Units157172802052DownloadDownloadDownload
    ModelStorageDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    MT18.121no. Secure Unit187112822052DownloadDownloadDownload
    MT18.242no. Secure Units187124822052DownloadDownloadDownload
    MT18.363no. Secure Units187136822052DownloadDownloadDownload
    MT18.484no. Secure Units187148822052DownloadDownloadDownload
    MT18.605no. Secure Units187160822052DownloadDownloadDownload
    MT18.726no. Secure Units187172822052DownloadDownloadDownload
    ModelStorageDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    MTN18.101no. Secure Unit187110822053DownloadDownloadDownload
    MTN18.202no. Secure Units187120822053DownloadDownloadDownload
    MTN18.303no. Secure Units187130822053DownloadDownloadDownload
    MTN18.404no. Secure Units187140832053DownloadDownloadDownload
    MTN18.505no. Secure Units187150832053DownloadDownloadDownload
    MTN18.606no. Secure Units187160832053DownloadDownloadDownload

  • Cladding and Fimishes

    urbanspec M-Series External stores can be specified with a selection of attractive and durable panel cladding options.

    • Firenze Freestyle Colour Powder Coat

      • Polyester Powder Coated Steel
      • RAL or BS Colour Selection 30% Gloss Finish
      • Laser Cut Hole Pattern Design

    • Firenze Nordic Night Black

      • Pre-Coated Steel
      • SSAB Greencoat Pural BT Finish

    • Firenze Anthracite Grey

      • Pre-Coated Steel
      • SSAB Greencoat Pural BT Finish

    • Firenze Walnut Brown

      • Pre-Coated Steel
      • SSAB Greencoat Pural BT Finish

    • Firenze Leaf Green

      • Pre-Coated Steel
      • SSAB Greencoat Pural BT Finish

    • ForestPanel SW TGV

      • Sustainably Sourced European Redwood TGV Plank
      • Pressure Treated Preservative (Green)

    • ForestPanel Cedar Slat

      • Sustainably Sourced Hardwood PAR Slat
      • Untreated Finish

    • ForestPanel Iroko Slat

      • Sustainably Sourced Hardwood PAR Slat
      • Untreated Finish

    • ZedPanel V-Mesh Black

      • 4mm Vertical Wire / 5mm Horizontal Wire / 200mm x 50mm Aperture Size
      • Colour Powder Coated Wire Black

  • Locking Systems

    urbanspec products are available with a range of robust locking options to suit the specific operational requirements. Manufactured in stainless steel with aluminium external handles and options for internal release.

    • Latch Only

      • Self-Latching Daybolt
      • No Bolt Lock
      • 100% Stainless Steel Mechanism / Aluminium Handles

    • Latch + Eurocylinder Lock

      • Self-Latching Daybolt
      • Eurocylinder Key-operated Self-Latching Bolt Lock
      • 100% Stainless Steel Mechanism / Aluminium Handles

    • Latch + FB2 Key Lock

      • FB2 Lever Key-operated Self-Latching Bolt Lock
      • 100% Stainless Steel Mechanism / Aluminium Handles

    • Latch + Code Secure Lock

      • Code Secured Entrance
      • Mechanical Code Lock
      • 100% Stainless Steel Mechanism + Push Buttons / Aluminium Handles

    • Slide Bolt + Padlock

      • Self-Latching Daybolt
      • Integral Slide Bolt / Handle with Padlock Provision
