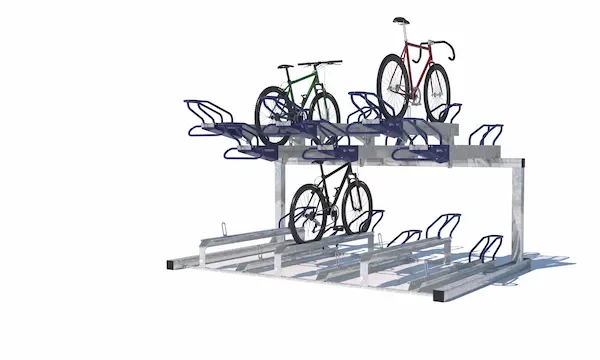

urbanspec T2 Two tier bike racks

Two-Tier Bike Racks are designed for high-density developments, providing secure storage for the maximum number of bikes per square metre.

Specified on communal bike storage projects where the available footprint is a significant constraint, two-tier racks will typically be located within bike hub buildings, indoor bike parking areas or bike shelters and canopies. They are often the bike rack of choice for public transport terminals, residential properties, inner-city offices, healthcare and educational facilities; anywhere that large numbers of bikes need to be stored securely and in an easily accessible format.

read more...

Designed and manufactured in the UK by Streetspace, the urbanspec T2 is constructed around an immensely strong fully-welded steel chassis which also forms the support frame for the upper tiers. Galvanised steel wheel trays provide accurate tracking for each cycle with both wheel wells formed in the tray and end constraint bars holding the cycle secure. Integral locking frames enable different cycle sizes to be secured reliably. urbanspec T2 is designed with an integral gas-assist lift to each upper tier tray as standard.

CAD models of urbanspec T2 two-tier cycle racks assist with the design evaluation process ensuring adequate space is available within the height of the enclosure and the depth to load and unload cycles from the racks. Bike hub and shelters designed specifically to accommodate two-tiered racks are available from Streetspace and urbanspec brand products.

show less
quote my project

urbanspec Two tier cycle rack model variants

  • Two Tier Gas Assisted Lift & Lower Bike Racks

    Two Tier Gas Assisted Lift & Lower Bike Racks

    ubanspec T2G models have the gas-assisted lift and lower system on upper tier bike trays. Integral nylon roller assemblies for ease of operation particularly with larger, heavier bikes. Tray type racks are fitted to the lower tier. All steel construction with hot-dip galvanised coating throughout for maximum durability in external environments. Welded bike locking points on both upper and lower trays for security. Rubber grips to upper tray handles.
    View product specification
  • Two Tier Manual Lift & Lower Bike Racks

    Two Tier Manual Lift & Lower Bike Racks

    urbanspec T2M is the manual lift and lower version using the same steel chassis as the gas-assist version, a similar bike tray and wheel holder design with integral nylon roller assemblies within the upper trays for ease of operation. Tray type racks are fitted to the lower tier. All steel construction with hot-dip galvanised coating throughout for maximum durability in external environments. Welded bike locking points on both upper and lower trays for security. Integral handle within upper tray.
    View product specification
  • Two Tier Manual Lift Bike Racks & Stands

    Two Tier Manual Lift Bike Racks + Stands

    urbanspec T2ME is a manual lift and lower version using identical steel chassis and upper trays with integral nylon roller assemblies as the T2M but with ST bike stands in place of lower trays. All steel construction with hot-dip galvanised coating throughout for maximum durability in external environments. Welded bike locking points on upper trays and lower stands fitted with security shear nuts. Integral handle within upper tray.
    View product specification
  • Two Tier Fixed Bike Racks

    Two Tier Fixed Bike Racks

    urbanspec T2F is a two tier bike rack without the cantilever action to raise and lower bikes from the upper tier for loading and unloading at ground level. With a welded all-steel construction the T2F frames and trays have the same durability as all urbanspec bike rack products. Available in the same build layouts for capacity as T2G and T2M models enabling available space to be optimised.
    View product specification

urbanspec T2 Specification & Options

  • Product Dimensions

    Configurations of these units will store any number of cycle spaces required.

    Swipe to see more
    ModelStorageProduct TypeDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    T2G.44no. CyclesGas Assisted Lift Cycle Racks20148401907DownloadDownloadDownload
    T2G.66no. CyclesGas Assisted Lift Cycle Racks201412151907DownloadDownloadDownload
    T2G.88no. CyclesGas Assisted Lift Cycle Racks201415901907DownloadDownloadDownload
    T2G.1010no. CyclesGas Assisted Lift Cycle Racks201419651907DownloadDownloadDownload
    T2G.1212no. CyclesGas Assisted Lift Cycle Racks201423401907DownloadDownloadDownload
    Swipe to see more
    ModelStorageProduct TypeDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    T2M.4 4no. CyclesManual Lift Cycle Racks20948401800DownloadDownloadDownload
    T2M.6 6no. CyclesManual Lift Cycle Racks209412151800DownloadDownloadDownload
    T2M.8 8no. CyclesManual Lift Cycle Racks209415901800DownloadDownloadDownload
    T2M.1010no. CyclesManual Lift Cycle Racks209419651800DownloadDownloadDownload
    T2M.1212no. CyclesManual Lift Cycle Racks209423401800DownloadDownloadDownload
    Swipe to see more
    ModelStorageProduct TypeDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    T2ME.44no. CyclesManual Lift Cycle Racks with ST stands lower level20948401800DownloadDownloadDownload
    T2ME.66no. CyclesManual Lift Cycle Racks with ST stands lower level209412151800DownloadDownloadDownload
    T2ME.88no. CyclesManual Lift Cycle Racks with ST stands lower level209415901800DownloadDownloadDownload
    T2ME.10 10no. CyclesManual Lift Cycle Racks with ST stands lower level209419651800DownloadDownloadDownload
    T2ME.1212no. CyclesManual Lift Cycle Racks with ST stands lower level209423401800DownloadDownloadDownload
    Swipe to see more
    ModelStorageProduct TypeDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    T2F.66no. CyclesFixed Cycle Racks188712051836DownloadDownloadDownload
    T2F.88no. CyclesFixed Cycle Racks188715801836DownloadDownloadDownload
    T2F.1010no. CyclesFixed Cycle Racks188719551836DownloadDownloadDownload
    T2F.1212no. CyclesFixed Cycle Racks188723301836DownloadDownloadDownload

  • Product Design

    T2 product design incorporates features to maximise usability, security, long service life and aesthetics.

    • Gas-assist lift and lower for reliable ease of use for use of upper tier

    • Fully-welded steel chassis for long service life in demanding conditions

    • Height adjustable ground fixing supports for reliable site fixing

    • Twin integral fixing points to secure cycles of all dimensions
