Bike Stands

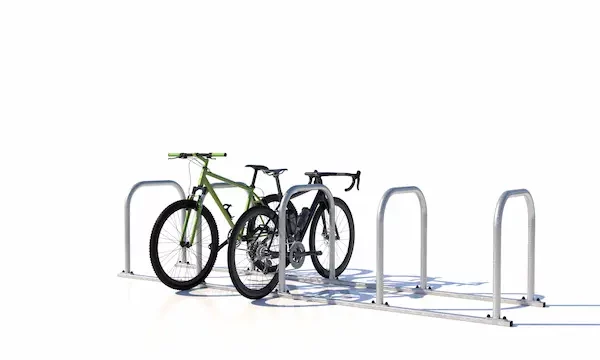

urbanspec ST Bike stands

urbanspec ST bike stands are based on the Sheffield hoop and provide cost-effective bike parking where available footprint is not a limiting factor.

Formed from 48mm mild steel tube with radius top corners to avoid potential injury from sharp edges. The standard hot dip galvanised finish ensures lasting durability, with optional powder coated finish options.


urbanspec ST cycle hoops are available as rail fixed, base plated or root fix formats. Rail fixed (or ‘toast rack’) bike stands are efficient for ground fixing in low traffic areas.Base plate types require ground fixing on each plate and root fixed bike stands are cast in concrete below ground where a clean, trip hazard surface finish is required for high volume traffic areas

ST cycle stands are typically set at 800mm centres although this can be increased to give users more space when locking their bikes. They can also be set out at 45 degrees from parallel to decrease the depth occupied.

show less
get a quote

urbanspec ST Cycle Stands Specification & Options

  • Product Dimensions

    ModelStorageFixing typeDepth
    Data SheetCAD ModelTech Drawing
    STR22no. CyclesRail Fix750150775DownloadDownloadDownload
    STR4 4no. CyclesRail Fix750960812DownloadDownloadDownload
    STR66no. CyclesRail Fix7501780812DownloadDownloadDownload
    STR88no. CyclesRail Fix7502580812DownloadDownloadDownload
    STR1010no. CyclesRail Fix7503380812DownloadDownloadDownload
    STF12no. CyclesRoot Fix750150775DownloadDownloadDownload
    STF24no. CyclesRoot Fix750960812DownloadDownloadDownload
    STF36no. CyclesRoot Fix7501780812DownloadDownloadDownload
    STF48no. CyclesRoot Fix7502580812DownloadDownloadDownload
    STF510no. CyclesRoot Fix7503380812DownloadDownloadDownload
    STP12no. CyclesSurface Fix750150775DownloadDownloadDownload
    STP24no. CyclesSurface Fix750960812DownloadDownloadDownload
    STP36no. CyclesSurface Fix7501780812DownloadDownloadDownload
    STP48no. CyclesSurface Fix7502580812DownloadDownloadDownload
    STP510no. CyclesSurface Fix7503380 812DownloadDownloadDownload
  • Stand Fixing Formats

    urbanspec ST cycle stands can be supplied as toastrack sets mounted on steel rails for surface fixing or as root fixed stands.
    • Rail Fix (Toast Rack)

      Stands are surface mounted to ground fix steel rails.

    • Baseplate

      Integral base plates for individual ground fixing.

    • Root Fix

      Stands are cast into concrete below ground.

  • Coating and Finishes

    urbanspec ST cycle stands are manufactured from mild or stainless steel with coating options to suit budget, location or coordinate with a specific street furniture scheme.
    Hot Dip Galvanised Finish
    The standard finish which is highly durable in all environments. The mild steel is chemical cleaned, fluxed and immersed in a molten zinc bath to form a protective coating.
    Polyester Powder Coated Finish
    An optional colour powder coated finish can be specified in lieu of a galvanised finish with suitable pre-treatment, zinc coating followed by an anti-corrosive primer. Finally a high gloss polyester powder coat finish is applied.
    Stainless Steel Finish
    Root fixed Sheffield cycle hoops can be specified in stainless steel for marine environments and as an architectural finish.
