P-Series Bin Stores

Canopies & Walkways

P-Series Bin Stores

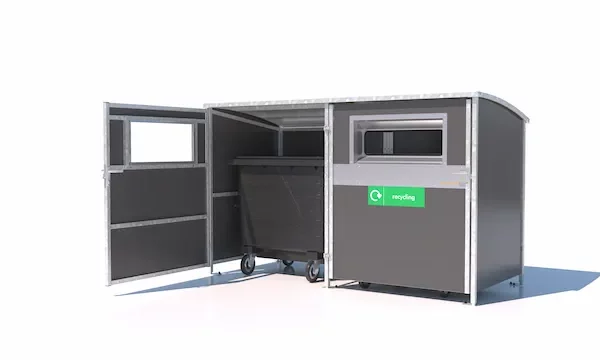

urbanspec P-Series Bin Stores
urbanspec PM4 Bin Stores – ForestPanel Slat Cladding – HD Galvanised Coating (Frame) – Latch Euro Cylinder Lock – General Waste and Recycling Aperture – WRAP Signage
urbanspec P-Series Bin Stores
urbanspec P-Series Bin Stores
urbanspec P-Series Bin Stores
urbanspec P-Series Bin Stores

urbanspec P-Series Bin stores

Enclosing wheeled bin containers and controlling user access, urbanspec P-Series Bin Stores are well established as the tough, versatile bin storage solution, effectively increasing recycling, while reducing fire risk and side waste issues.

read more...

Design configurable for bin capacity, features and finishes, urbanspec P-Series Bin Stores consolidate waste stream containers in a row of neat housings, secured at a safe distance from property and convenient for RCV access.

urbanspec P-Series bin stores are produced in two sizes with PL models housing two wheeled bins up to 240L capacity, and PM the 4-wheeled bin containers from 660L to 1280L. All P-Series bin stores control user access through a waste stream specific aperture in the front door. Integral shelving for the storage of recycling boxes and caddies within the unit is available as an option.

Reduced fire risk is central to urbanspec P-Series design and where Bin Store units cannot be located outside of the six metre recommended distance due to site constraints, the units can be specified with fire-resistant wall and roof cladding options.

The urbanspec P-Series steel frame is hot-dip galvanised as standard with colour powder coated finishes available. External panel specifications are available clad in timber or steel with optional colour schemes that enable outdoor storage units to be coordinated with architectural building fabric design.

show less
Quote My Project
NBS button

urbanspec Bin Stores P-Series Specification & Options

  • Product Availability and Dimensions

    urbanspec P-Series bin store range is available in specific variants to accommodate different sized bins. Adjustable spacer bars are fitted to ensure that all waste container varieties are filled at the front of the unit. Internal deflector plates can be fitted as an option to ensure all deposited waste is contained in the bins.
    Swipe to see more
    ModelStorageDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    PL11no. 140L-240L 2-Wheeled Bin9007601490DownloadDownloadDownload
    PL22no. 140L-240L 2-Wheeled Bins90013801490DownloadDownloadDownload
    PL3 3no. 140L-240L 2-Wheeled Bins90020401490DownloadDownloadDownload
    PL44no. 140L-240L 2-Wheeled Bins90026601490DownloadDownloadDownload
    PL55no. 140L-240L 2-Wheeled Bins90033201490DownloadDownloadDownload
    PL66no. 140L-240L 2-Wheeled Bins90039401490DownloadDownloadDownload
    Swipe to see more
    ModelStorageDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    PLN11no. 140L 2-Wheeled Bin8006701500DownloadDownloadDownload
    PLN22no. 140L 2-Wheeled Bins80011901500DownloadDownloadDownload
    PLN33no. 140L 2-Wheeled Bins80017501500DownloadDownloadDownload
    PLN44no. 140L 2-Wheeled Bins80022801500DownloadDownloadDownload
    PLN55no. 140L 2-Wheeled Bins80028401500DownloadDownloadDownload
    PLN66no. 140L 2-Wheeled Bins80033701500DownloadDownloadDownload
    Swipe to see more
    ModelStorageDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    PLX11no. 240L-360L 2-Wheeled Bin10607601490DownloadDownloadDownload
    PLX22no. 240L-360L 2-Wheeled Bins106013801490DownloadDownloadDownload
    PLX33no. 240L-360L 2-Wheeled Bins106020401490DownloadDownloadDownload
    PLX44no. 240L-360L 2-Wheeled Bins106026601490DownloadDownloadDownload
    PLX55no. 240L-360L 2-Wheeled Bins106033201490DownloadDownloadDownload
    PLX66no. 240L-360L 2-Wheeled Bins106039401490DownloadDownloadDownload
    Swipe to see more
    ModelStorageDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    PM11no. 660L-1280L 4-Wheeled Bin139015901840DownloadDownloadDownload
    PM22no 660L-1280L 4-Wheeled Bins139030801840DownloadDownloadDownload
    PM33no. 660L-1280L 4-Wheeled Bins139045701840DownloadDownloadDownload
    PM44no. 660L-1280L 4-Wheeled Bins139060601840DownloadDownloadDownload
    PM55no. 660L-1280L 4-Wheeled Bins139075501840DownloadDownloadDownload
    PM66no. 660L-1280L 4-Wheeled Bins139090401840DownloadDownloadDownload
    Swipe to see more
    ModelStorageDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    PM RL11no. 660L-1280L 4-Wheeled Bin139015821839DownloadDownloadDownload
    PM RL22no. 660L-1280L 4-Wheeled Bins139030721839DownloadDownloadDownload
    PM RL33no. 660L-1280L 4-Wheeled Bins139045621839DownloadDownloadDownload
    PM RL44no. 660L-1280L 4-Wheeled Bins139060521839DownloadDownloadDownload
    PM RL55no. 660L-1280L 4-Wheeled Bins139075421839DownloadDownloadDownload
    PM RL66no. 660L-1280L 4-Wheeled Bins139090321839DownloadDownloadDownload
    Swipe to see more
    ModelStorageDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    PMN11no. 660L 4-Wheeled Bin104015901850DownloadDownloadDownload
    PMN22no. 660L 4-Wheeled Bins104030801850DownloadDownloadDownload
    PMN33no. 660L 4-Wheeled Bins104045701850DownloadDownloadDownload
    PMN4 4no. 660L 4-Wheeled Bins104060601850DownloadDownloadDownload
    PMN55no. 660L 4-Wheeled Bins104075501850DownloadDownloadDownload
    PMN66no. 660L 4-Wheeled Bins104090401850DownloadDownloadDownload
    DownloadDownloadDownload
    Swipe to see more
    ModelStorageDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    PMC11no. 720L-940L Chamberlain Bin122012002110DownloadDownloadDownload
    PMC22no. 720L-940L Chamberlain Bins122023202110DownloadDownloadDownload
    PMC33no. 720L-940L Chamberlain Bins122034302110DownloadDownloadDownload
    PMC44no. 720L-940L Chamberlain Bins122045402110DownloadDownloadDownload
    PMC55no. 720L-940L Chamberlain Bins122056502110DownloadDownloadDownload
    PMC66no. 720L-940L Chamberlain Bins122067602110DownloadDownloadDownload
    Swipe to see more
    ModelStorageDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    PMT11no. 1100L Taylor Continental Bin125014901840DownloadDownloadDownload
    PMT22no. 1100L Taylor Continental Bins125028801840DownloadDownloadDownload
    PMT3 3no. 1100L Taylor Continental Bins125042701840DownloadDownloadDownload
    PMT44no. 1100L Taylor Continental Bins125056601840DownloadDownloadDownload
    PMT55no. 1100L Taylor Continental Bins125070501840DownloadDownloadDownload
    PMT66no. 1100L Taylor Continental Bins125084401840DownloadDownloadDownload
    Swipe to see more
    ModelStorageDepth
    [mm]    		Width
    [mm]    		Height
    [mm]    		Data SheetCAD ModelTech Drawing
    PML1 1no. 660L 4-Wheeled Bins14909101850DownloadDownloadDownload
    PML22no. 660L 4-Wheeled Bins149016901850DownloadDownloadDownload
    PML33no. 660L 4-Wheeled Bins149025201850DownloadDownloadDownload
    PML44no. 660L 4-Wheeled Bins149033001850DownloadDownloadDownload
    PML55no. 660L 4-Wheeled Bins149041101850DownloadDownloadDownload
    PML66no. 660L 4-Wheeled Bins149048801850DownloadDownloadDownload

  • Cladding & Finishes

    urbanspec bin stores are available in a wide range of cladding options within the standard frame design to give choice to select according to the site use, architectural style and surrounding environment. (Specifications are subject to change without notice) P-Series steel frame is hot-dip galvanised as standard with colour powder coated finishes available.

    • Firenze Anthracite Grey

      • Pre-Coated Steel
      • SSAB Greencoat Pural BT Finish

    • Firenze Anthracite Grey FR

      • Pre-Coated Steel
      • SSAB Greencoat Pural BT Finish
      • Non-Combustible Fire Protection Board Liner

    • Firenze Nordic Night Black

      • Pre-Coated Steel
      • SSAB Greencoat Pural BT Finish

    • Firenze Nordic Night Black FR

      • Pre-Coated Steel
      • SSAB Greencoat Pural BT Finish
      • Non-Combustible Fire Protection Board Liner

    • Firenze Leaf Green

      • Pre-Coated Steel
      • SSAB Greencoat Pural BT Finish

    • Firenze Leaf Green FR

      • Pre-Coated Steel
      • SSAB Greencoat Pural BT Finish
      • Non-Combustible Fire Protection Board Liner

    • Firenze Walnut Brown

      • Pre-Coated Steel
      • SSAB Greencoat Pural BT Finish

    • Firenze Walnut Brown FR

      • Pre-Coated Steel
      • SSAB Greencoat Pural BT Finish
      • Non-Combustible Fire Protection Board Liner

    • Firenze Colour Powder Coat

      • Polyester Powder Coated Steel
      • RAL or BS Colour Selection

    • ForestPanel SW Slat Colour

      • Sustainably Sourced European Redwood PAR Slat
      • Pressure Treated Preservative
      • Colour Selection Woodstain

    • ForestPanel SW Slat

      • Sustainably Sourced European Redwood PAR Slat
      • Pressure Treated Preservative (Green)

    • ForestPanel SW Slat FR

      • Sustainably Sourced European Redwood PAR Slat
      • Holz Prof Fire Retardant Coating (Clear Finish)

    • ForestPanel SW TGV FR

      • Sustainably Sourced European Redwood TGV Plank
      • Pressure Treated Preservative (Green)
      • Non-Combustible Fire Protection Board Liner

    • Firenze Freestyle Surface Design

      • Polyester Powder Coated Steel
      • RAL or BS Colour Selection
      • Laser Cut Hole Pattern Design

    • Firenze Freestyle Surface Design FR

      • Polyester Powder Coated Steel
      • RAL or BS Colour Selection
      • Laser Cut Hole Pattern Design
      • Non-Combustive Fire Protection Board Liner

    • Firenze Design Wrap

      • Galavnised Steel Panel
      • SAV Graphic Wrap Finish
      • Custom Graphic Design

    • Firenze Design Wrap Illustration

      • Galavnised Steel Panel
      • SAV Graphic Wrap Finish
      • Custom Graphic Design

  • Locking Systems

    urbanspec bin stores are all available with a selection of robust locking options to suit a range of operational requirements. Constructed completely from stainless steel with aluminium handles, these locks will give years of service in any environment.

    • Latch + Code Secure Lock

      • Code Secured Entrance
      • Battery operated up to 150,000 open/close cycles
      • LED-Illuminated code keypad / IP66 rated Aluminium housing

    • Latch + Eurocylinder Lock

      • Self-Latching Daybolt
      • Eurocylinder Key-operated Self-Latching Bolt Lock
      • 100% Stainless Steel Mechanism / Aluminium Handles

    • Slam Latch + Eurocylinder Lock

      • Fixed Handle Slam Latch
      • Eurocylinder Key-operated Self-Latching Bolt Lock
      • 100% Stainless Steel Mechanism / Aluminium Handles

    • Slam Latch + Triangle Key Lock

      • Fixed Handle Slam Latch
      • Triangle Key-operated Self-Latching Bolt Lock
      • 100% Stainless Steel Mechanism / Aluminium Handles

    • Latch Only

      • Self-Latching Daybolt
      • No Bolt Lock
      • 100% Stainless Steel Mechanism / Aluminium Handles

    • Slide Bolt + Padlock

      • Self-Latching Daybolt
      • Integral Slide Bolt / Handle with Padlock Provision

  • Aperture

    The urbanspec range of bin stores has a wide range of door aperture options which have been developed in conjunction with our clients over several years and have proven to be highly effective in reducing contamination of waste streams. They can be factory installed but are easily reconfigured if requirements change.

    • Solid Door – No Aperture

      Perfect For Warden Controlled
      Great For Bulky Waste Applications

    • Large Bag

      Allows Bagged Waste or Recycling

    • Individual Item—Slot

      Allows Only Non-Bagged Paper and Cardboard

    • Individual Item—Hole

      Allows Only Non-Bagged Bottles, Cans and Jars

    • Individual Item—Mixed

      Allows Only Non-Bagged Recycling

    • Small Bag

      Allows Bagged and Non-Bagged Recycling

    • WEE Equipment Recycling

      Allows WEE Equipment Recycling

    • Blanking Plate

      Temporary Restricted User Access

  • Signage

    WRAP signage can be selected from our standard range or your bespoke signage can be incorporated. Signs are printed on exterior grade latex with a protective gloss overlaminate, and are mounted on an aluminium panel for maximum durability.

    • Bulky Waste

    • General Waste

    • Recycling

    • Food Waste

    • Mixed Recycling

    • Paper

    • Mixed Paper

    • Cardboard & Cartons

    • Plastics

    • Plastic & Cans

    • Household Plastic Packaging

    • Glass

    • Mixed Glass Bottles & Jars

    • Food Tins & Drinks Cans

    • Cans, Bottles & Glass

    • Example Bespoke Signage

    • Example Bespoke Signage

    • Example Bespoke Signage

    • Example Bespoke Signage
